FOUNDATION, PILING & ANCHORING SOLUTIONS

Casing Drilling Systems for Stable Foundation Boreholes

For foundation, piling and anchoring contractors that need stable holes, controlled casing advancement and predictable progress through loose overburden and mixed ground.

Request a Casing System Review
Explore Drilling Tools

Stable BoreholesCollapse-control focus

System ChoiceODEX, symmetric or concentric

Project ContinuityGround-led wear planning

Schedule ControlFewer avoidable interruptions

FOUNDATION ENGINEERING

The Casing Drilling Conditions We Solve

Foundation boreholes often pass through fill, gravel, boulders, water-bearing layers and fractured rock. The correct casing system protects hole quality and reduces schedule risk.

01

Loose Overburden & Collapse

Advance casing while drilling so unstable ground does not close the hole or interrupt construction.

02

Boulders & Mixed Ground

Match the system to transitions between soil, cobbles, fractures and competent rock.

03

Diameter & Alignment Control

Protect the required pile, anchor or casing geometry while managing feed and rotation.

04

System Compatibility

Confirm casing, pilot, ring bit, hammer, shank and rig capacity before mobilization.

Casing Advancement in the Field

Stable foundation drilling depends on the interaction between casing system, flushing, rig control and the actual ground profile.

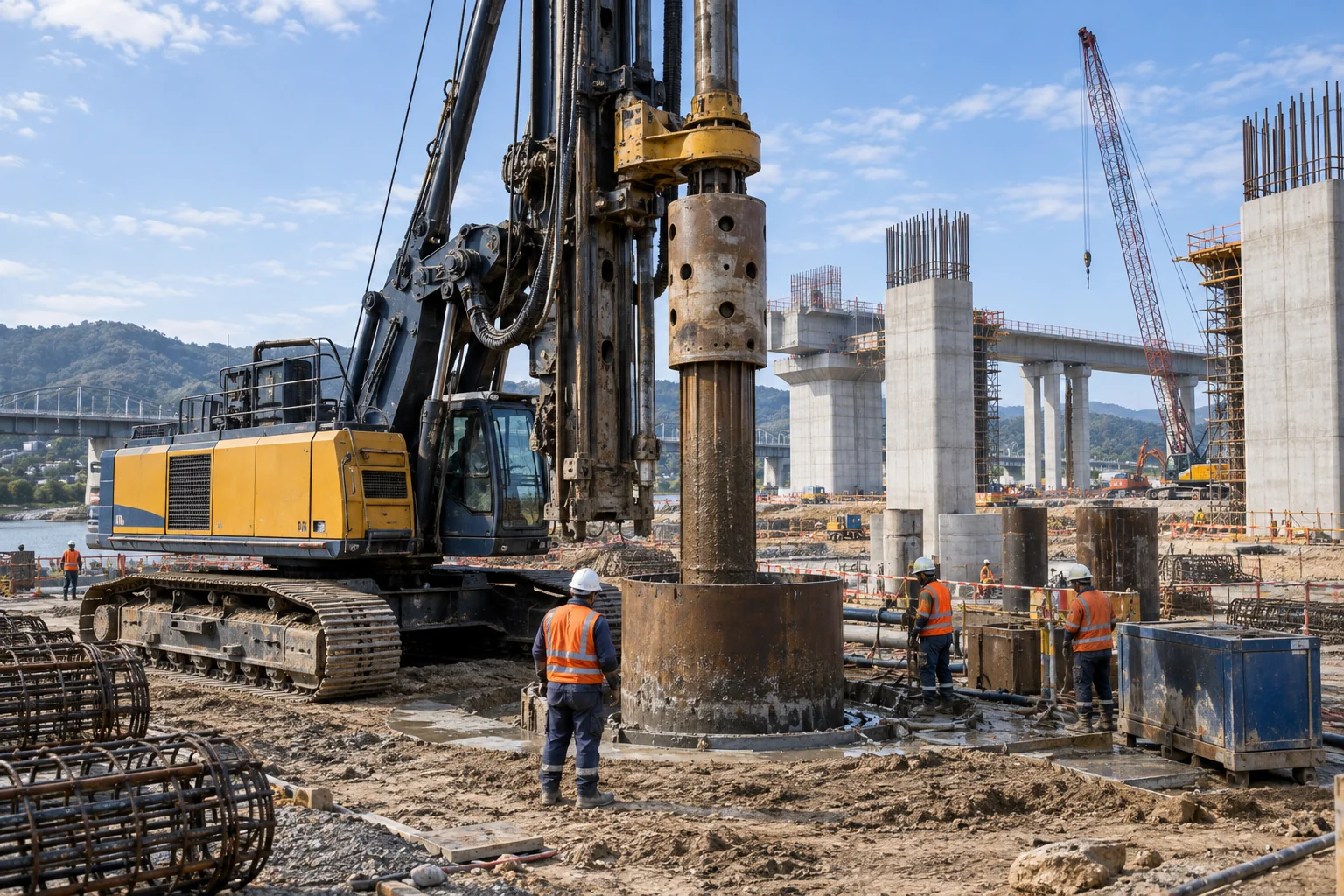

Foundation drilling rig installing deep casing at a major infrastructure construction site

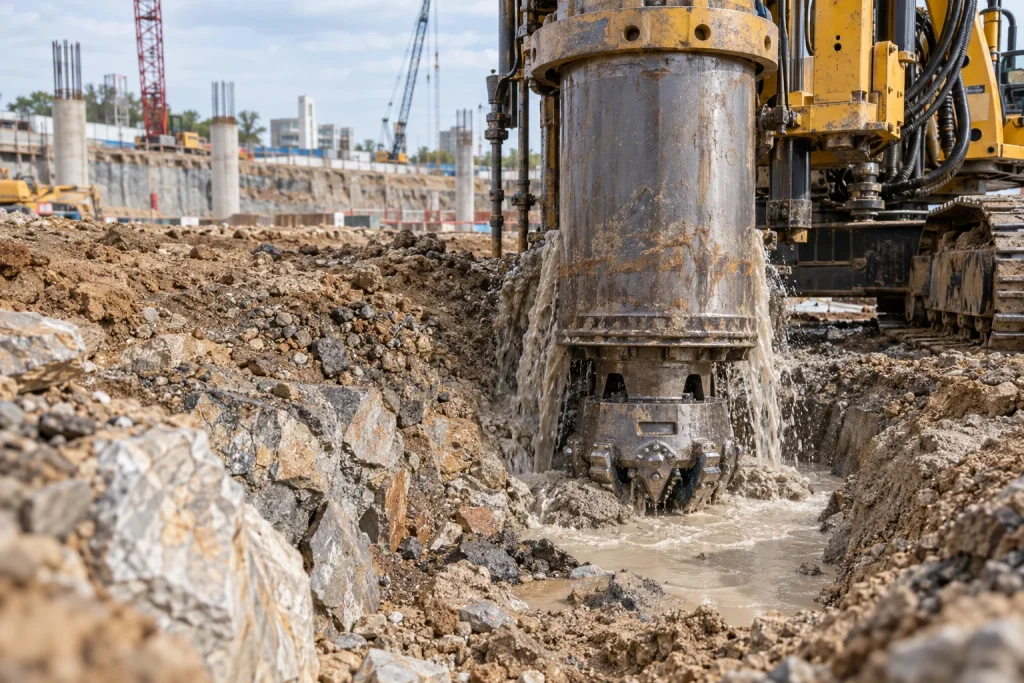

Casing drilling system advancing through unstable overburden at a foundation site

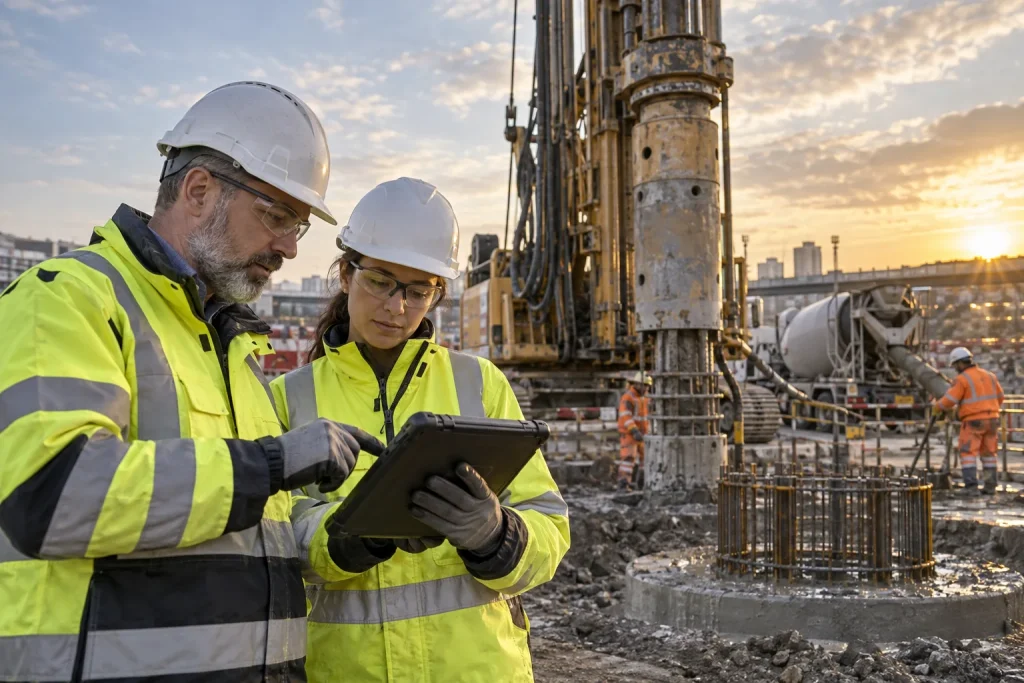

Foundation drilling engineers reviewing borehole and casing parameters beside a drill rig

GROUND-LED CASING SYSTEM SELECTION

Choose the Casing Method Around the Ground and Recovery Plan

HLDRILLS reviews the geotechnical layers, borehole diameter, target depth, casing design and rig capacity before matching an eccentric, symmetric or concentric drilling approach.

The target is a stable, correctly positioned borehole with a practical casing sequence, controlled wear and fewer interruptions when the ground changes.

Recommended Configuration Logic

Final specifications are confirmed after project-condition review.

  • Ground: fill, clay, gravel, boulders, fractures, groundwater and competent rock
  • Application: foundation pile, micropile, anchoring, slope support or casing shoe
  • Casing: diameter, wall thickness, temporary or permanent use and recovery plan
  • System: ODEX eccentric, symmetric or concentric casing configuration
  • Equipment: hammer size, rig torque, pullback, air supply and connection

FOUNDATION ENGINEERING

From Ground Profile to Stable Borehole

A four-step workflow reduces casing, compatibility and construction risk before equipment reaches site.

STEP 01

Ground & Project Review

Collect geotechnical layers, groundwater, borehole dimensions, rig data and casing requirements.

STEP 02

Casing System Matching

Select ODEX, symmetric or concentric tooling and confirm every interface in the assembly.

STEP 03

Trial & Parameter Setup

Confirm feed, rotation, flushing and casing-advance parameters under controlled conditions.

STEP 04

Borehole & Wear Review

Track alignment, spoil return and tool wear, then refine the setup for repeatable production.

FOUNDATION ENGINEERING

Recommended Foundation & Casing Tools

The primary solution families are ODEX eccentric, symmetric and concentric casing systems, supported by compatible DTH tooling for rock sockets and hard inclusions.

FOUNDATION ENGINEERING

Related Foundation & Casing Results

Review comparable casing and hard-ground applications when evaluating stability, borehole quality and project continuity.

TECHNICAL SELECTION SUPPORT

Send Us Your Ground Profile and Casing Parameters

Share the soil and rock layers, groundwater, borehole diameter and depth, rig and hammer model, casing specification and recovery plan. Our team will recommend a casing-system configuration for review.

Get a Casing System Recommendation

WHO THIS SOLUTION IS FOR

Built for Foundation, Piling and Anchoring Contractors

For foundation contractors, piling companies and anchoring teams that need stable holes, controlled casing advancement and fewer construction delays in loose or mixed ground.

01

Foundation Contractors

Keep projects on schedule Choose a casing method that protects borehole stability and supports predictable progress through difficult layers.

02

Piling Contractors

Reduce construction risk Match casing, pilot, ring bit and rig interfaces to keep pile-hole geometry and ground control predictable.

03

Anchoring Contractors

Improve drilling quality Use a small-diameter casing approach that helps protect alignment and hole integrity for anchors and slope works.

04

EPC Project Teams

Simplify package coordination Combine casing systems, DTH tooling and technical review into a clearer drilling package for the project schedule.
